Maxxdigm
Maxx-5Z
Maxx-5Z
Request a Custom Estimate
MAXX milling machines are available by quotation only. DeeDental 365 prepares an individual written estimate for your equipment, truck freight delivery, on-site installation, and training.
Final pricing, freight arrangements, installation requirements, and scheduling are confirmed in your estimate before the order is finalized. Please include your clinic or laboratory name, installation address and ZIP code, preferred model, and delivery access details in your request.

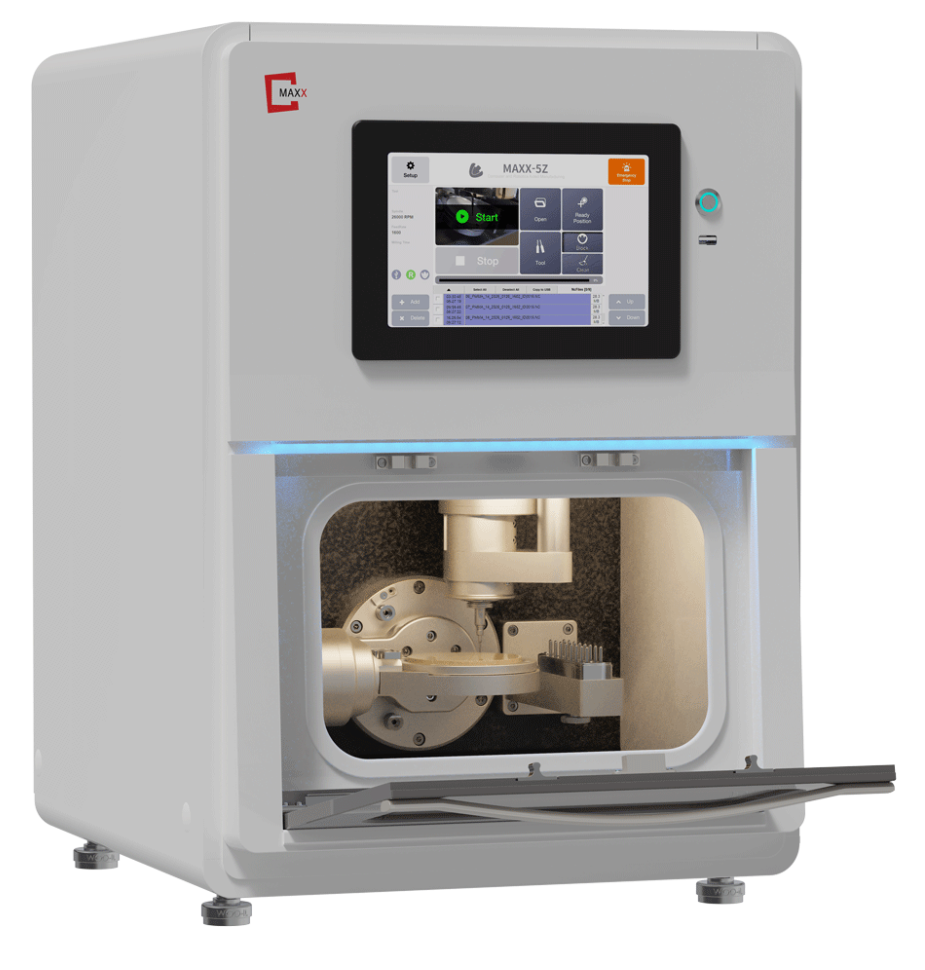

MAXX DS200-5Z – Specialized in Precise Dry Milling
The MAXX DS200-5Z is a compact and high-precision 5-axis desktop milling machine specialized for soft materials. Designed for dry milling, it delivers outstanding accuracy and stability with a small footprint — perfect for clinics and laboratories that need efficient and reliable milling performance.
⚙️ Technical Specifications
- Milling Type: 5-Axis Dry Milling
- Dimensions: 50 W × 68 D × 71 H cm
- Weight: 100 kg (220 lb)
- Spindle: SycoTec (Germany), 0.86 kW, Max. 100,000 rpm
- Axis Operating Range: A = ±36°, B = ±180°
- Drive Motors: AC Servo Motors
- Tool System: 12-Tool ATC, 3 mm shank
- Holder: C-Type Holder
- Power Supply: AC 110–220 V, 10 A
💻 Software Options
- Millbox
- Millbox Eco: Only Crown, Bridge, Hybrid Abutment, and Veneer
🧱 Compatible Materials
- Zirconia
- Wax
- PMMA
- Hybrid Ceramic
- Supports C-type clamp fixtures
🦷 Applications
- Crowns, Inlays & Onlays
- Facials, Undercuts, Inlays, Veneers
- Soft material prostheses requiring thin margins and fine details
💡 Key Features
